ASRock DeskMini X300 Performance Test Results Announced

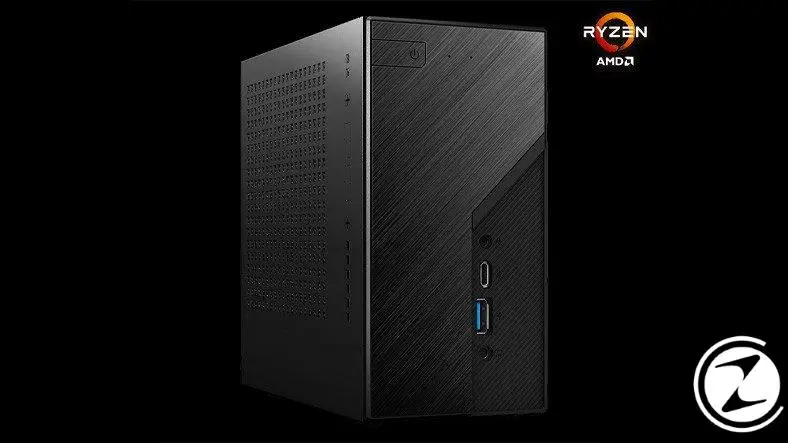

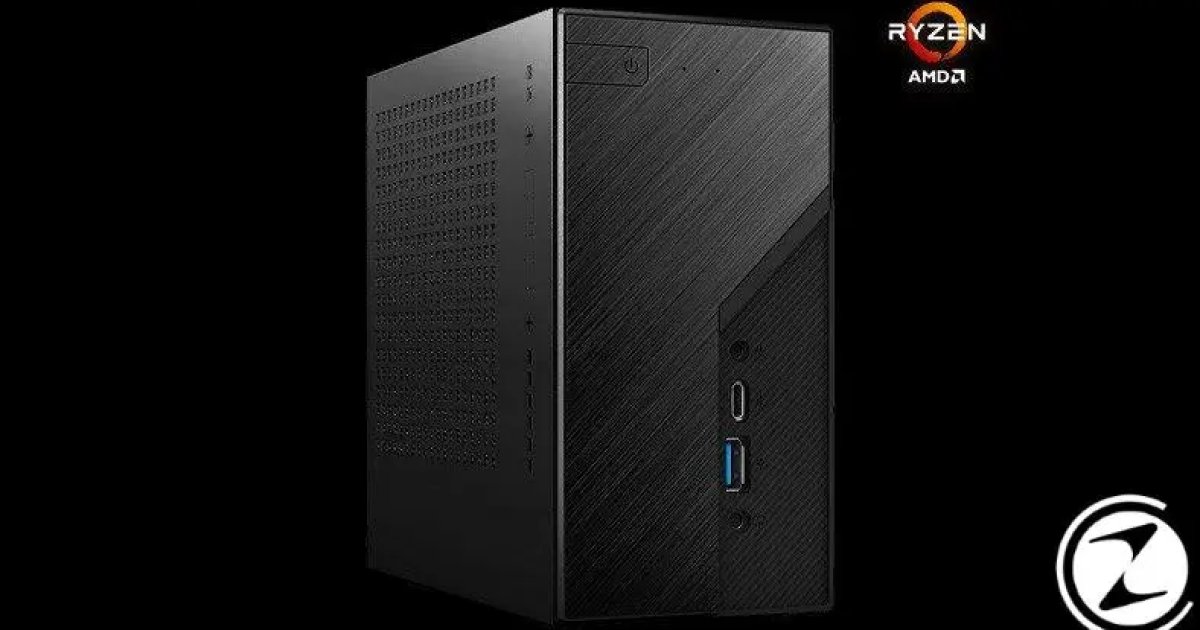

ASRock's recently announced AMD Ryzen 4000G "Renoir" series desktop processor DeskMini X300 basic PC put to the test. DeskMini X300 looks like a very interesting option for users who want powerful processor performance and decent graphics capabilities in small sizes.

The X300 kit, which ASRock announced last month, is divided into two types: standard X300 and X300W. The only difference between these two variants is that the X300W Intel Wi-Fi kit being using it. All the remaining features of the X300 and X300W are the same.

ASRock DeskMini X300 specifications and performance

DeskMini X300; It supports AMD's Ryzen 4000G Renoir, Ryzen 3000G Picasso and Ryzen 2000G Ridge APUs with a TDP of up to 65 W. So it's based on Zen core architecture. AM4 desktop APUs It is supported by PC. The PC also supports two DDR4-2933 SO-DIMM memory with a capacity of up to 64 GB, 2 SATA 3 ports, and 2 Ultra M.2 slots. There is also an M.2 slot for the WiFi & Bluetooth module. The PC has 3 USB 3.2 Gen 1 ports and one USB 2.0 port and has HDMI and Display Port as display outputs.

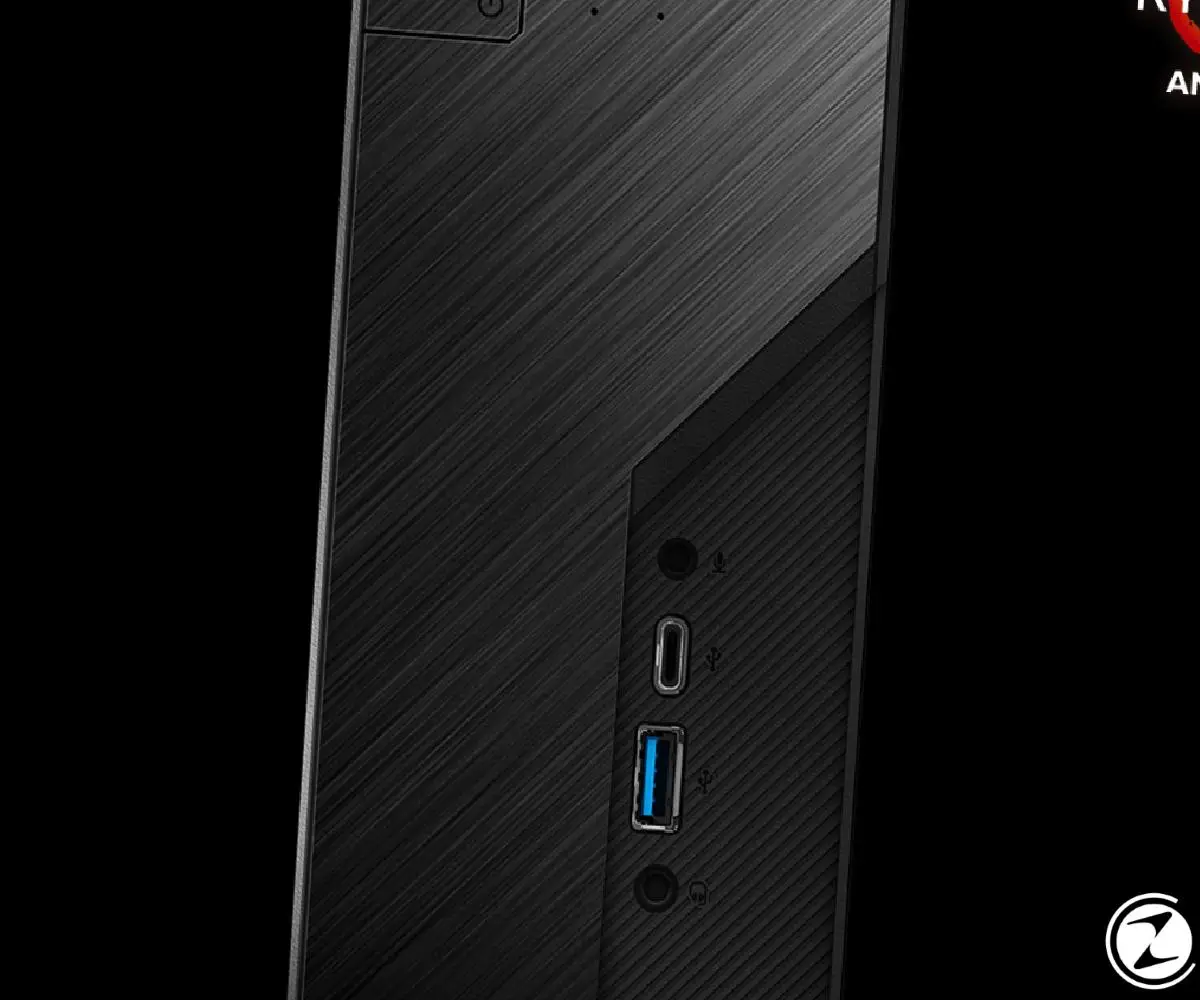

ASRock also said that the X300 motherboard supports overclocking and 5 – 10% better performance He announced that it could be taken. The memory can also be set up to 3,200 MHz, which means better graphics performance. The dimensions of the entire unit are as follows: 155mm x 155mm x 80mm. Front panel sockets include USB Type-C 3.2 Gen 1, USB Type-A 3.2 Gen 1 and audio sockets.

There is no PCIe slot on the motherboard, which means that an external AIC or graphics card cannot be installed. We can say that users have to rely on the graphics card integrated into their CPUs. Alright, DeskMini X300What are the 'benchmark' scores of ?

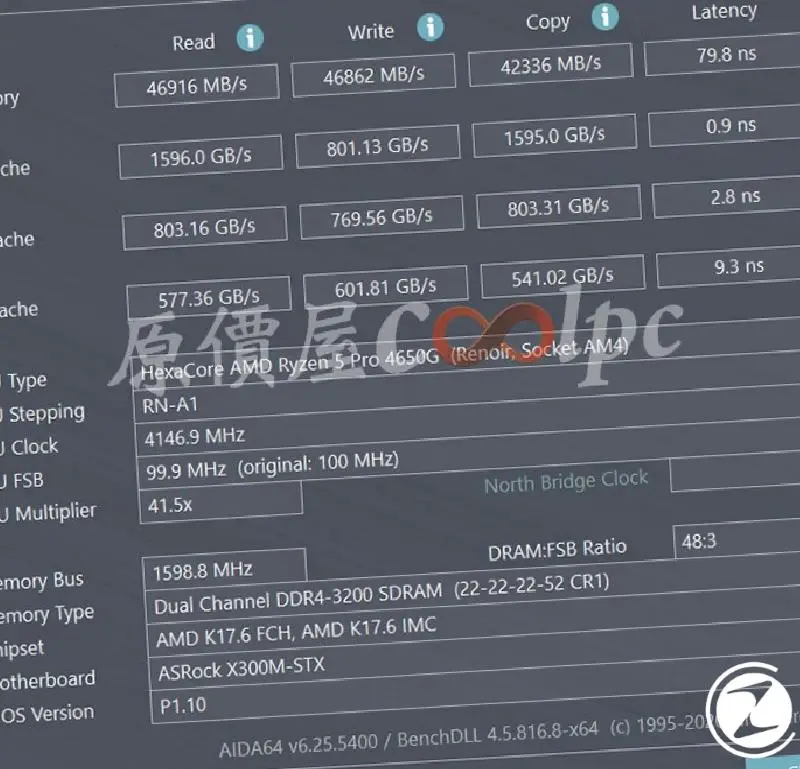

System, Ryzen 4000G Renoir CPU Tested with a trio: Ryzen 3 PRO 4350G, Ryzen 5 PRO 4650G and Ryzen 7 PRO 4750G. Two 8 GB ADATA modules and an SSD were used for a total memory capacity of 16 GB. In the test carried out in Cinebench R20, Ryzen 5 PRO 4650G received 3670 points. Intel Core i7-8700K showed an equivalent performance. Write, read, copy and latency performance are 46.916 MB/sec, 46.862 MB/sec, 42.336 MB/sec and 79.8 nanoseconds respectively.

Looking at the GPU performance, it can be seen that the 7 nm Vega architecture running on the Ryzen 4000G Renoir APU performs well. League of LegendsIt managed to get 100 FPS at 1080p in , and 60+ FPS at 1080p in CS:GO.

On the temperature and power consumption side, it was stated that the chip operated at around 95 C under the AIDA64 stress test and consumed around 60 W of power. While the average clock speed was 3.7 GHz, it reached 3.9 GHz on all cores when overclocked. CPU temperature also reached up to 100 C. It was also said that these temperatures were measured only in AIDA64 and that the chip showed normal performance under standard workload. As a result, it can be said that it is a very good option for those who are looking for a small form factor PC, with its price of $ 150.
